TRENS SBL500 SINGLETURN M.C.Y
The TRENS SBL500 turning centre with rigid construction slant bed is designed not only for heavy roughing but for demanding finishing operations with focus on high accuracy and surface quality too. Exceptional steadiness of cutting process is ensured by high stiffness of the individual machine components.
Long-term operational reliability designates this machine for turning workshops with continuous operation and high productivity demands. The turning centre can be operated in fully automated mode when equipped with devices for automatic workpiece manipulation.
The machine is equipped with a 12-position turret VDI 40 with live tool positions, C-axis with independent servomotor for achieving precise and stabile work piece position during cutting forces loading and comes with remote diagnostics and data management. Other features include 1500 mm distance between centres, direct measuring of spindle position – high precision at out-of-axis machining of large diameter workpieces, a wide range of executions and accessories – hydraulic clamping with chucks or collets, bar feeders, tool probes, automatic door opening, oil mist filtration from work area and covers with reinforced zones providing high level of operator´s safety.
The TRENS SBL500 features a max swing diameter of 600 mm, max turning diameter of 410 mm, max bar diameter of74/117* mm and a max diameter of bars with spindle reduction sleeve or with spindle prolongation of66/109* mm.
The max weight of workpiece in centres is 420 kg and max weight of overhung workpiece 215 kg.
*valid for optional execution
For more information, contact 600 SA Machine Tools – Cell: 072 157 6003.
TRENS SN32 UNIVERSAL CENTRE LATHE
SN32 is universal centre lathe with main motor output of 4 kW. A wide operating speed range and its unique design ensure high stability during material turning. This machine delivers outstanding performance and is also suitable for vocational schools. Designed for piece and small-lot production, the SN32 is frequently used in maintenance and repair divisions. TRENS lathes are precise and reliable machines in wide range of versions and optional accessories.
Main characteristic features include a simple and ergonomic control and high precision during machining. Add to this long life time, low operating costs and easy maintenance.
While all important parts are hand scraped, the requirements of safety standard EN ISO 23 125 are provided.
The machine can cut various types of threads with a wide range of pitches.
For more information, contact 600 SA Machine Tools – Cell: 072 157 6003.
SBX500 DOUBLETURN M.C.Y
The SBX500 DoubleTurn M.C.Y is a high productivity turning center of a rigid design suitable for medium to large production of simple as well as complex geometrical shapes. Machine execution with Y-axis and live tools allows machining of complex shaped workpieces on a single machine which significantly reduces production time and increases workpiece accuracy. The machine seriously contributes to increased productivity while decreasing investment costs.
Notable features include a modular conception allowing configuring the machine for a wide range of technologies and materials, a counter spindle with passing hole clamping allowing complete machining, Y axis with saddle wedge contributing to increased stability of cutting process and a fast turret with 12 live tools size VDI 40.

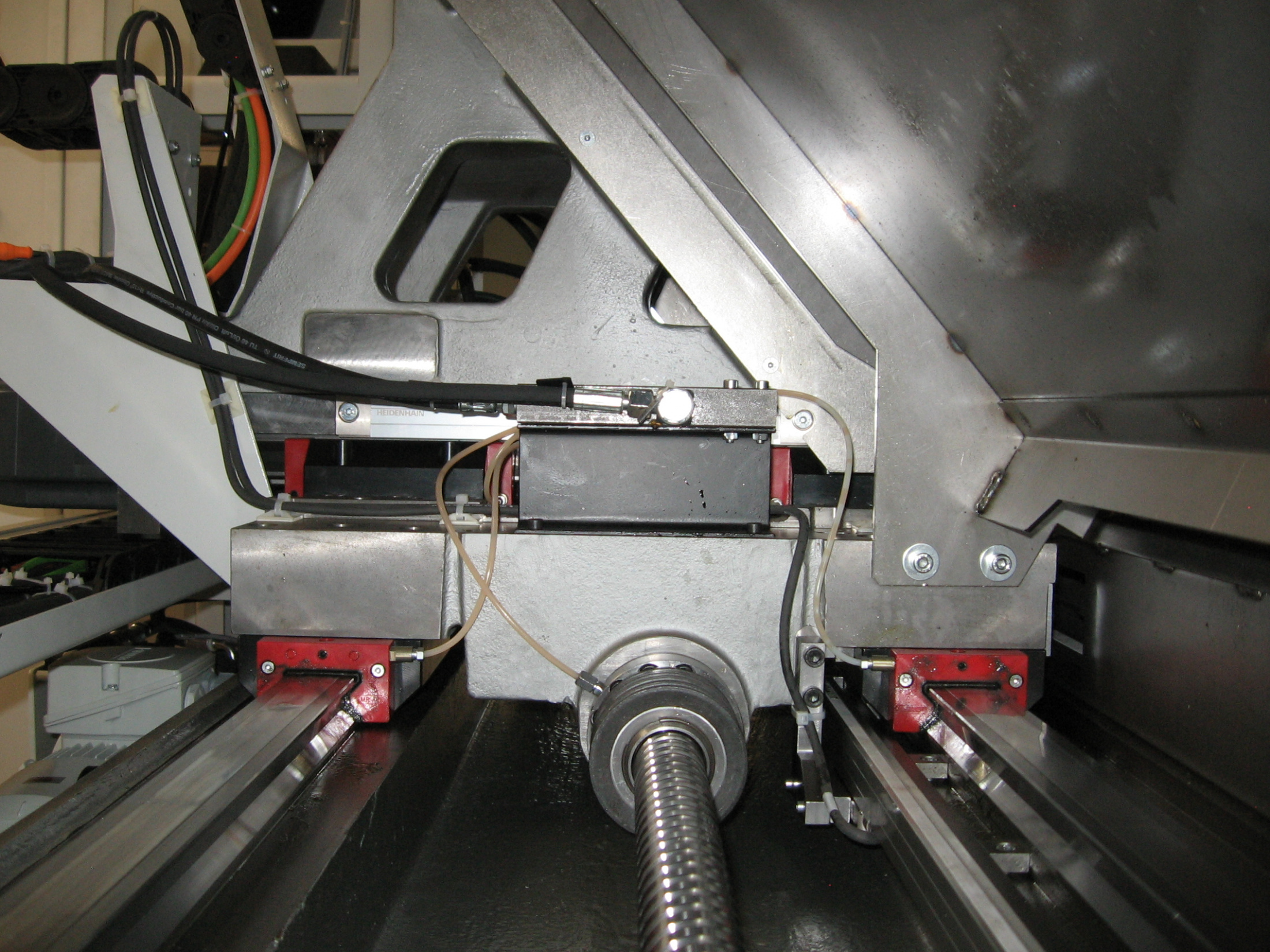

Add to this the C-axes with independent servomotors for achieving precise and stable work piece positioning, linear roller guide ways with bearing capacity dimensioned for hard roughing but also precision of finishing operations, while increased spindle bores extend the machining possibilities for a wider assortment of work pieces.
The integrated control panel improves machine control ergonomics for the operator, while programming in 3D through cycles is provided.
Servo drives with electric energy saving features and an option for industrial robot integration for manipulation of raw material and work pieces add to an impressive line-up.
The SBX500 DoubleTurn M.C.Y features a max swing diameter of 650 mm, max turning diameter of 550 mm and a max bar diameter of 74/117* mm. The max diameter of bars with spindle reduction sleeve or with spindle prolongation is 66/103* mm.
The max weight of workpiece in centres is 1000 kg with the max weight of overhung workpiece 372 kg.
*valid for optional execution
For more information, contact 600 SA Machine Tools – Cell: 072 157 6003.
