Cobots Successful Collaboration Between Man and Robot

The more closely man and machine can collaborate, the more efficient robot applications will become. Photo: BMW Group
Become a Master
PBS Machine Tools
Partner with the Names and People you trust
Book a Demo Now
CNC Clear Cut

Robotics and automation are among the key technologies for ensuring lasting international success. Cobots interact directly with humans and give manufacturing companies a competitive edge in the market. At EMO Hannover 2019, trade visitors will find countless automation solutions and collaborative robots aimed at enhancing productivity.

Automation and digitalization can be used to make manufacturing processes more efficient. Of particular interest here are cobots. These collaborative industrial robots work together with humans – without special protective measures such as fences or demarcated areas. In which processes are cobots already being used? How can collisions and any resulting risk of injury be avoided? Robotics manufacturers, suppliers of various peripheral components for automation solutions, as well as safety and scientific experts will be providing an overview of the current situation and giving forecasts for future developments.

Making working life easier – and more ergonomic

“Humans are indispensable for intelligent production,” says Jochen Vetter, Manager of Robot Safety at Pilz. “Robots can perform physically demanding or repetitive activities, leaving the humans to take care of more sophisticated tasks. Automation can thus also provide a response to the demographic shift.” Different validation methods have to be applied to human-robot collaboration (HRC). For example, it is imperative that measurements are taken to determine the safety risks involved in any possible collisions. Pilz has developed its own method for this. A system measures the forces acting on the human body and compares them with the ISO/TS 15066 limit values for collaborative robots.

“The challenge is to eliminate any boundaries between the working areas of humans and machines. In addition to the dangers posed by the robot, human movements must also be taken into account,” says the robotics safety expert. “The speed of these is not always predictable, nor are human reflexes or the sudden arrival of other people.

Schunk automation specialists are aiming to provide robot manufacturers and integrators with independently tested co-act grippers. Photo: Schunk

“Collisions, however, should never result in injury.” These must be prevented by the use of more reliable control systems and intelligent, dynamic sensors built into the robot. In addition, it is important to set reliable safety standards based on normative principles.

“The interaction will develop organically, for example in terms of language and gestures,” Vetter is convinced. “This will take HRC to a new quality level for a different category of actions. In addition, HRC solutions will in future be linked to the factory control system via OPC UA or Industry 4.0 RAMI standards. Potential areas of application lie not in largeseries production, but in the manufacture of medium and small series. HRC makes sense in situations where employees can be relieved – ergonomically – of physically strenuous tasks, such as in maintenance work.”

Gripping workpieces of up to 8 kg using safety intelligence

“The biomechanical limits specified by ISO/ TS 15066 have so far restricted the use of cobots to the handling of small parts, for example in assembly applications in the electronics industry or in the pick & placing of housings, turned and milled parts, etc.,” says Prof. Markus Glück, Managing Director of Research & Development, Chief Innovation Officer at Schunk. “Our EGL-C long-stroke gripper, however, allows a new scale of components to be manipulated. For the first time it is possible to handle workpieces up to 8 kg safely with form-fit gripping. This opens up great potential, including for machine tools or in assembly.” Thanks to integrated safety intelligence, the Co-act (collaborative actuator) EGL-C has succeeded in achieving gripping forces of up to 450 N in collaborative applications. This is around three times greater than before and represents a world first – and is also on show at EMO Hannover 2019. “HRC will radically change the world of work,” predicts Glück. “The focus is on improving the ergonomics, creating more flexible work processes, increasing efficiency and optimizing processes. Intelligent gripper systems will permit higher component weights to be handled in the future. In addition, 24V technology will enable them to be deployed on mobile platforms which will gain in importance as a result. There is also great potential for the use of lightweight robots to assist in assembly.”

A new era in machine tool charging

Division Manager Peter Pühringer with the new six-axis generation of TX2 robots, also on show at EMO Hannover 2019. Photo: Stäubli Robotics

“Collaborative and mobile robot systems offer new possibilities for the automation of machine tools. For the first time, automation can break out of its rigid constraints and achieve unprecedented levels of flexibility and productivity thanks to innovative robotic solutions,” reports Peter Pühringer, Division Manager at Stäubli Robotics. In order to maximise this flexibility, Stäubli has designed its new six-axis TX2 generation for universal use. The robots in the new version can collaborate directly with humans. They are also available as mobile and collaborative robot systems. “This heralds a new era in machine tool charging,” states Pühringer. The robots work both in stand-alone operation and directly with machine operators. Mobile versions of the robot can easily link different machine tools together and take care of the complete workflow in an Industry 4.0 environment. “This unbelievable flexibility allows completely new, digitally networked production processes to be created,” says Pühringer. “These will significantly increase productivity and give innovative enterprises an unprecedented competitive edge.

Sensors help avoid possible collisions

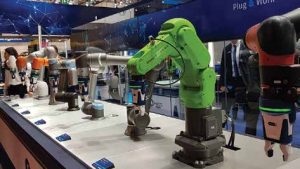

Human-robot collaboration (HRC) must rule out the possiblity of injury in the event of a collision. Photo Dag Heidecker

A crucial and topical issue is how the CE process is handled when robots are used at different stations. Photo: Bernd Müller

“At present, cobots are frequently used for simple handling processes, such as charging machines. Although there is often no safety fence, they are equipped with additional safety features and are not generally used for direct human-robot collaboration,” says Prof. Gunther Reinhart, holder of the Chair of Industrial Management and Assembly Technology at the iwb (Institute for Machine Tools and Industrial Management) at the Technical  University of Munich. “Work is currently focussing on HRC planning support, on safety and also on instructing the robots. Safety-related innovations are aimed at detecting possible collisions in advance through the use of different types of sensors – such as capacitive or ultrasonic sensors – or cameras.” The Institute for Machine Tools and Industrial Management will be on hand at EMO Hannover 2019 to provide further information to trade visitors.”

Author: Dag Heidecker, daxTR – Technik + Redaktion, Wermelskirchen (near Cologne)
