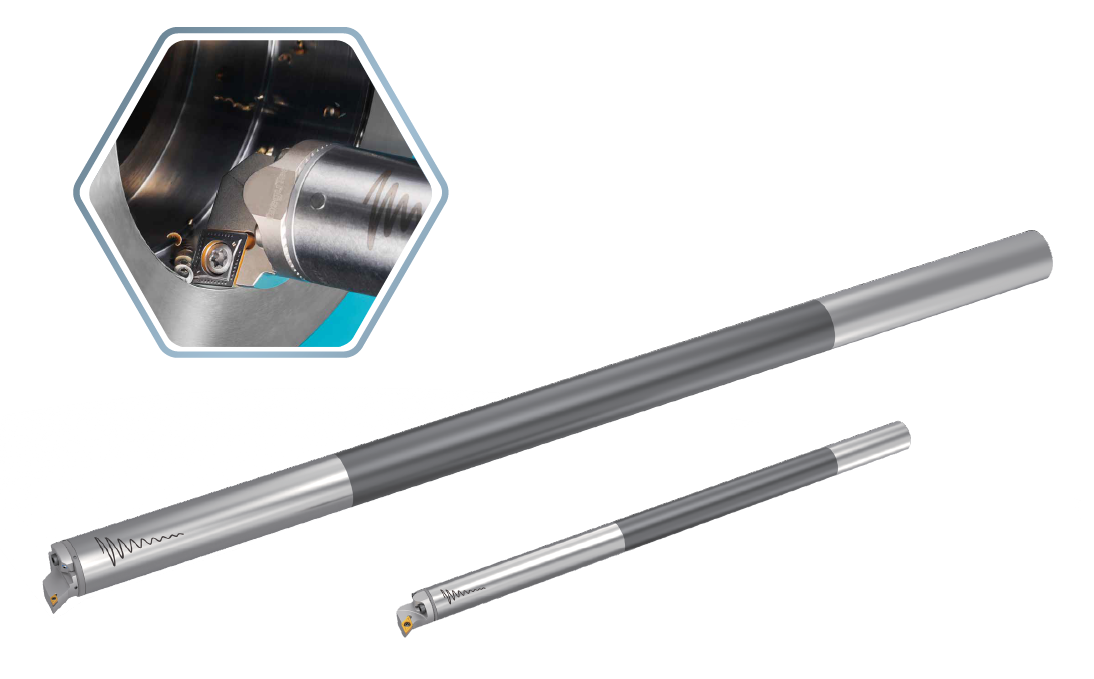

Advance Machining has reached new levels with the vibration free SFEED-TEC HUSH-BORE, a line that efficiently performs deep internal turning at an incredible 10xD, 12xD and even 14xD . The steel and carbide-based 12xD and 14xD shanks offer outstanding machining performance even during deep internal machining because they have improved rigidity and hardness, which prevent shank breakage caused by bending.
In order to reach high speeds and feeds without damaging the workpiece, spindle, insert and so on, TaeguTec’s Advance Turning team developed a revolutionary damping system located inside the shank which results in a smooth surface finish as well as an internal coolant supply for longer tool life and stable machining, due to the rigid clamping system. All these technologically advanced features increase feeds and cutting speeds, making it highly productive. In order to provide a full range of options, HUSH-BORE is available in many different diameters and in a few tool lengths. The various exchangeable heads can be securely fastened with an unrivalled serrated coupling located in the boring bars.

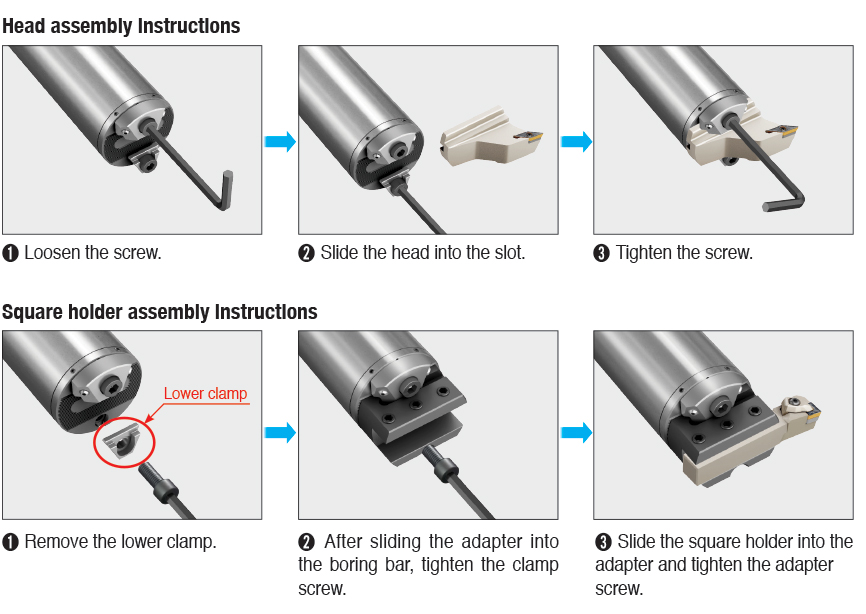

Ø80 HUSH-BORE Assembly Instructions
For more information please contact TaeguTec – Tel: 011 362-1500.
